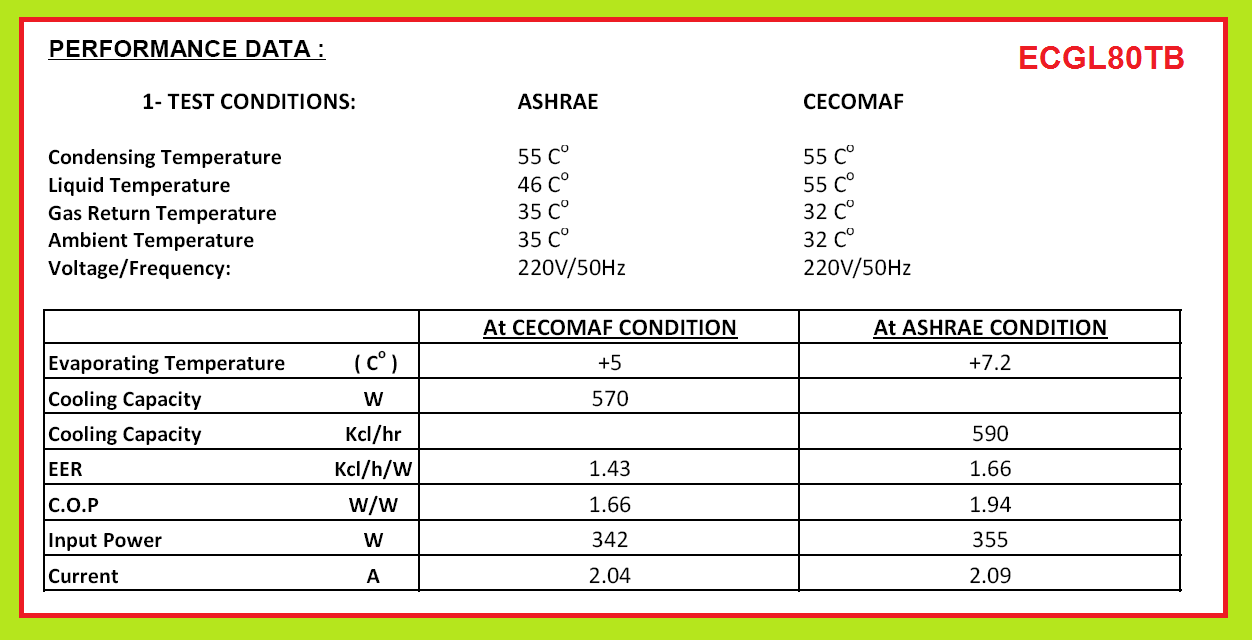

Model: ECGL80TB Code: ECGL20108001
| Refrigerant: | R134a | |
| Application: | MHBP | |
| Evaporating Temperature Range: | -25°C to +10°C | |
| Voltage/Frequency: | 220/240V/50 HZ | |
| Compressor Cooling: | FAN | |
| Expansion Device: | Capillary Tube | |
| Packaging Quantity: | Multi 21 pcs | |
| Approvals: | CE-VDE | |
| Max. Ambient Temperature: | 43°C | |
| Max. Allowed Pressure: | 20 Kg/cm2 | |
| Max. Peak Discharge Temperature: | 135°C | |
| Max. Peak Condensing Temperature : | 70°C |
| Oil Charge: | 300 cm3 |
| Oil Type Configuration: | ester |
| Oil Type Viscosity: | 19 cSt |
| Weight: | 16.1 kg |
| Motor Type: | CSIR |
| Voltage working range at 50 Hz: | 187-264V |
| Maximum Motor Temperature: | 130°C |
| Locked Rotor Current: | 9.7A |
| Start Winding Resistance: | 36.50 Ω at 25°C |
| Run Winding Resistance: | 9.30 Ω at 25°C |
| Phase: | 1 ph |
| Internal Diameter | mm / inch |
| Suction Connector | 6.5 |
| Discharge Connector | 5/16 |
| Process Connector | 6.5 |
| Material | Copper |
| Starting Device: | RELAY MTRP38 |
| Motor Protection: | T0137/xx |
| Condenser Type: | CU - AL |
| Condenser Model: | 8 T 3 R |
| Fan Motor Output Power: | 10 W |
| Fan Blade Diameter: | 200 mm/28° |
